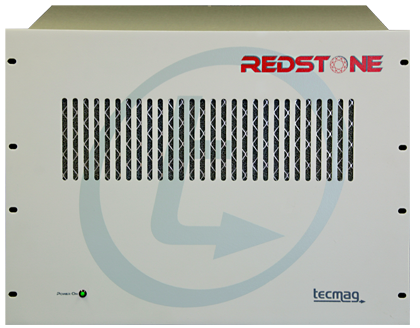

Tecmag Redstone

The digital Redstone™ is a compact, modular, Windows 11-based, NMR / MRI / NQR console with the most agile transmitter of any system on the market and configurable with multiple transmitters, receivers, and gradient channels.
A range of additional options are available including transmitter arrays, high power linear RF amplifiers, digital receiver arrays, gradient control system, shim unit, digital lock system, variable temperature unit and MAS spin-speed controller. With its numerous options, the Redstone can be configured for any NMR, NQR or MRI application in the frequency range from 2 kHz to 3.5 GHz. Tecmag’s TNMR™ software lets you use the same powerful software for instrument control and for off-line processing of spectroscopy and imaging data.

Some features

  • 10 ns minimum pulse width
  • 10 ns timing resolution
  • < 10 ns phase switching
  • 0.0055° phase resolution
  • < 20 ns phase-continuous frequency switching
  • 64 Million point waveform memory for each transmitter and gradient channel
  • 12.5 MHz (80 ns per complex point) digital receiver bandwidth
  • Up to 24-bits of digital receiver dynamic range



Look on the official Tecmag website for more information.

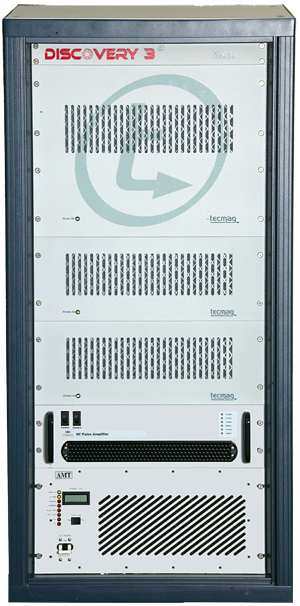

Tecmag Discovery

The Tecmag Discovery 3™ is a Windows 11 Professional-based integrated console designed especially for Solid-State NMR spectroscopy. The console includes everything needed to interface to any magnet and solids probe – from computer to cables to duplexing network. Built upon the Redstone platform, the Discovery 3™ draws heavily on the latest digital surface mount technology. For example, the extensive use of super-fast SHARC DSP processors throughout the system makes it one of the most versatile consoles available today.

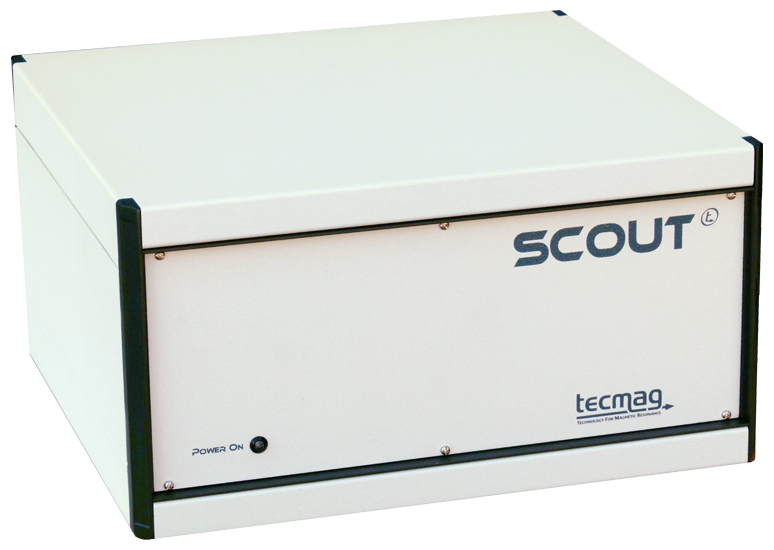

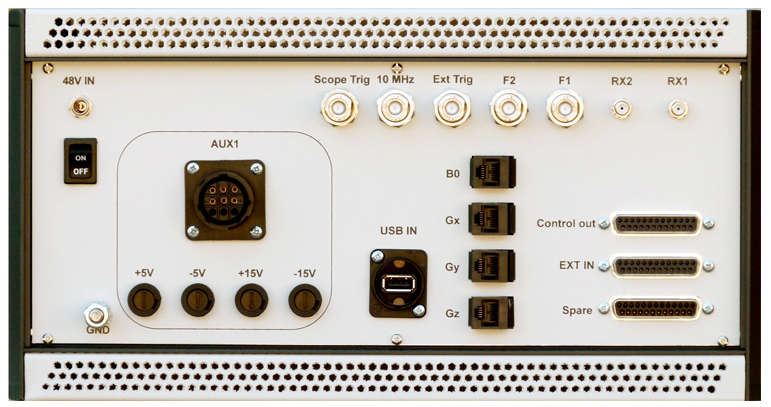

Tecmag Scout

The Scout utilizes advanced technology from the Redstone system but in a more compact bench-top configuration. This makes the Scout an ideal console for more sophisticated portable applications or for bench-top NMR and bench-top NQR work.

Some features

  • Minimum pulse width of 100 ns with 10 ns resolution
  • Phase switching < 20 ns
  • Amplitude switching < 20 ns
  • Phase-continuous frequency switching < 20 ns
  • 64 Million point waveform memory for each transmitter and gradient channel
  • 12.5 MHz (80 ns per complex point) digital receiver bandwidth
  • Fast <1 µs receiver recovery time



Look on the official Tecmag website for more information.

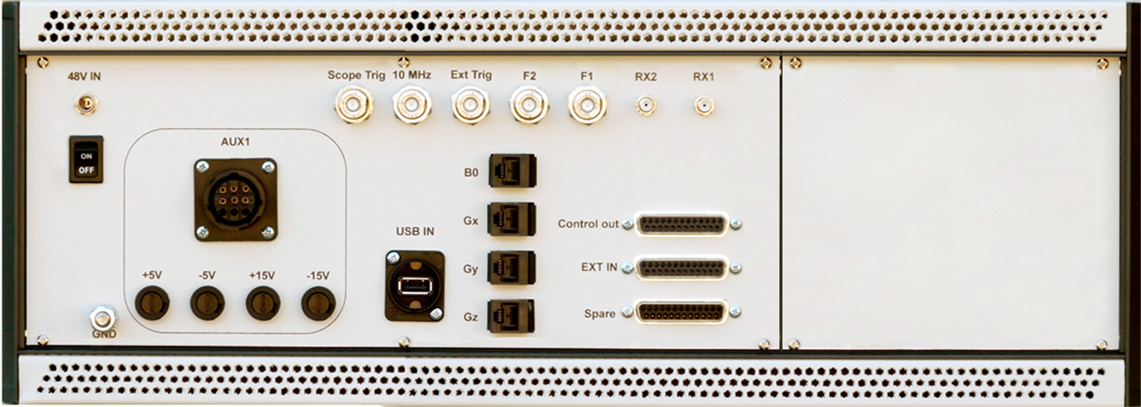

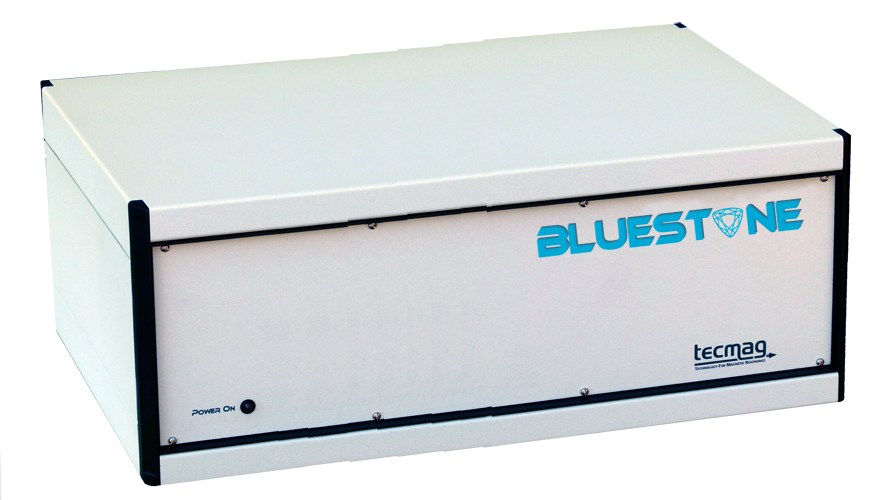

Tecmag Bluestone

Introducting the new Tecmag Bluestone–a bench-top imaging console with broadband transmitter and up to two digital receiver channels that is controlled by a Windows 11 Pro 64-bit computer via a USB 2.0 interface. The transmitter is equipped with fast, phase-continuous frequency modulation allowing robust multi-slice performance in a compact solution for MRI studies up to 300 MHz.
The Bluestone has a high stability oven-controlled oscillator, three axis gradient control system, External Trigger, and multiple TTL outputs. for blanking gradient amplifiers or triggering other instruments.

Some features

  • Minimum pulse width of 100 ns with 10 ns resolution
  • Phase switching < 20 ns
  • Amplitude switching < 20 ns
  • Phase-continuous frequency switching < 20 ns
  • 64 Million point waveform memory for transmitter and gradient channels
  • 12.5 MHz (80 ns per complex point) digital receiver bandwidth



Look on the official Tecmag website for more information.

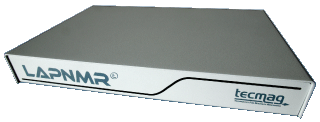

Tecmag LapNMR

The Tecmag LapNMR is a broadband portable or bench-top NMR / NQR console on a single board, measuring 8.5” x 11.5” and less than 1” high.
It contains a DDS-based transmitter and digital receiver that can be connected to any computer, including a laptop, via USB 2.0 interfaces. The console is capable of operating at any frequency from 2 kHz to 125 MHz with a receiver bandwidth up to 12.5 MHz.
LapNMR includes TNMR™, the powerful instrument control and NMR data processing software with NMRscripts® for automation and a spectroscopy pulse sequence library.

Some features

  • Portable: available with or without a 12V battery, ideal for in-field measurements including explosives detection
  • Bench-top / Rackmount: for laboratory NMR and NQR applications
  • Single board: for custom / O.E.M. applications
  • Gradient control: Available with single-channel gradient control for diffusion studies
  • Down-Hole NMR (82mm width assembly): for petroleum reservoir, CO2 sequestering and ground water analysis



Look on the official Tecmag website for more information.

Watch this space for your customised solution - contact us.
