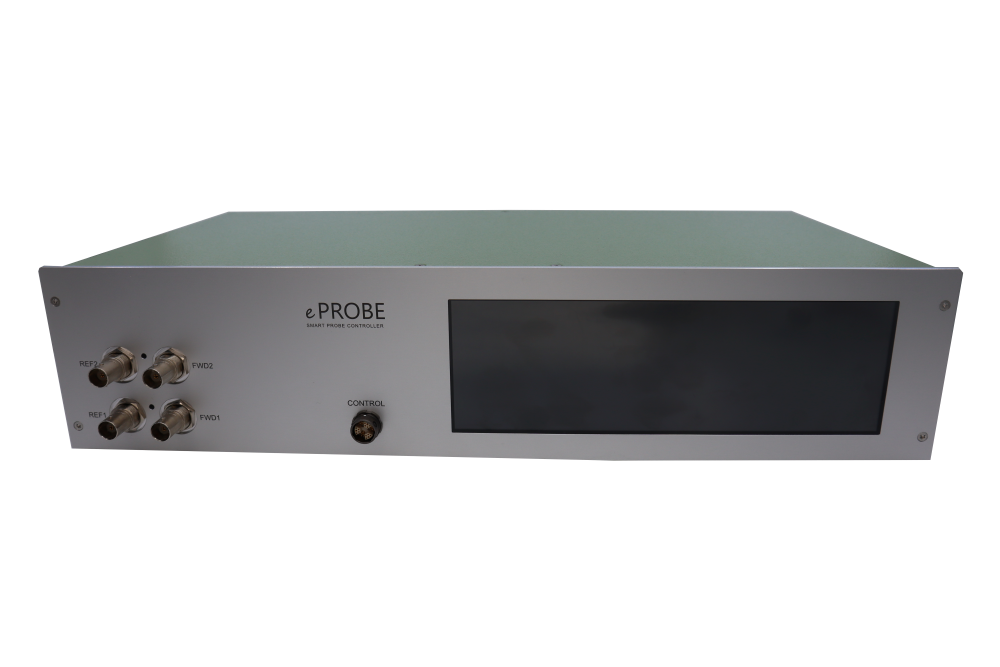

SMART PROBE CONTROLLER

  • Stand-alone controller unit with integrated software package
  • Enables remote/manual and automatic tuning/matching (max. three channels)
  • Enables remote/manual and automatic goniometer control
  • Suitable for eATM ROBOT and NMR SERVICE probes
  • Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
  • Compatible with any NMR software, e.g. Bruker TopSpin, TNMR

Configurations

  • Single-, double-, and triple-channel controller with software
  • Any channel can be used for goniometer control
  • Software adapts to selected/detected probe
    -- e.g. double-channel version to control Tune/Match—X and goniometer
    – e.g. double-channel version to control Tune/Match—X and Tune/Match—H

Interface

  • Plug-and-play interface to NMR console via USB and/or TTL
  • One TTL output/channel required (start tuning/matching or goniometer)
  • One TTL input required (stop tuning/matching or goniometer)
  • Full synchronisation with the pulse sequence via preamble, e.g. Bruker

Controls and features

  • USB interface for external keyboard and USB-C data stick

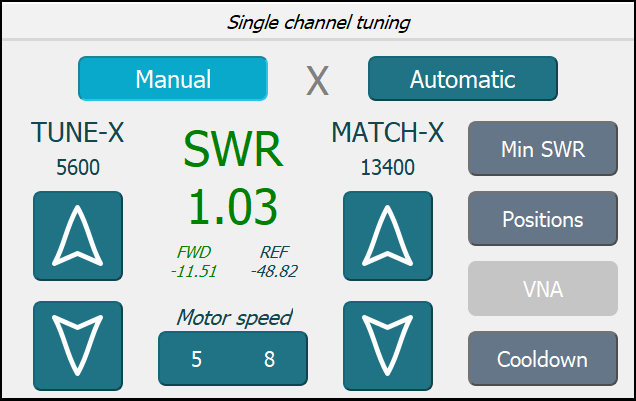

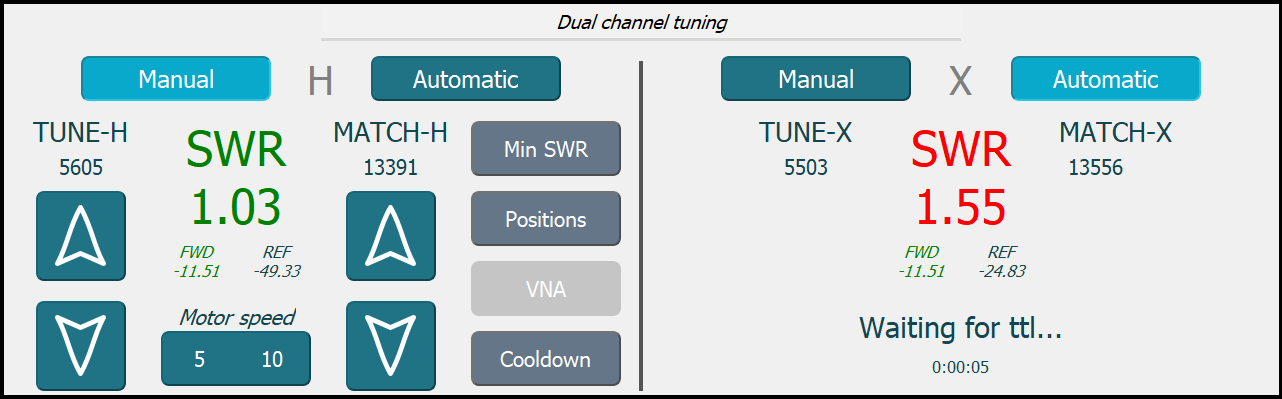

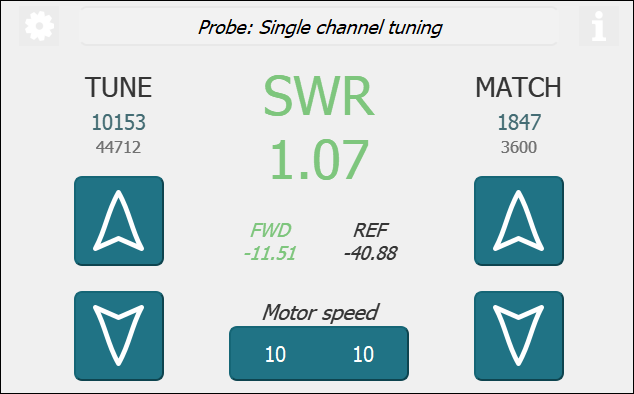

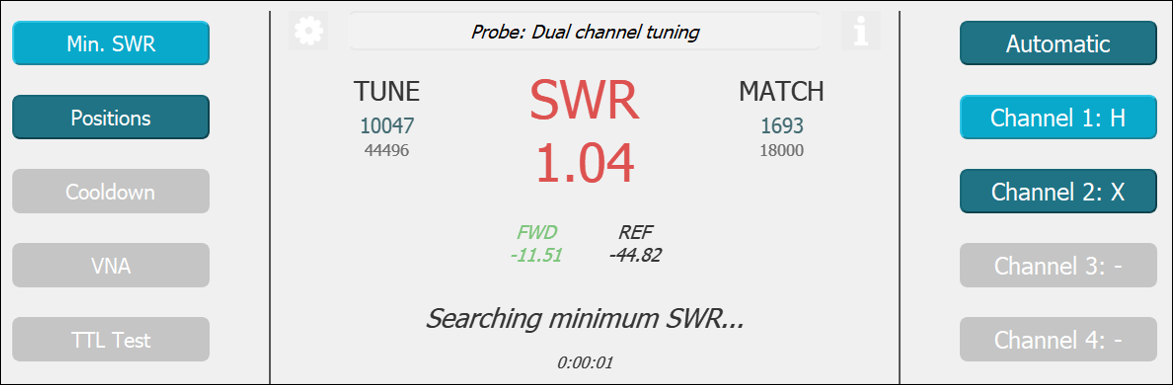

  • Control via front panel touch screen or VNC connection to any computer
  • Total frequency range: 30 – 900 MHz
  • Usable frequency range depends on the probe and spectrometer
  • Automatic probe settings detection (smart probe adapter)
  • Maximum flexibility for automatic tuning/matching
    -- Automatic tuning/matching mode (continuously/on-the-fly)
    -- Tuning/matching by list (pre-save 100+ positions)
  • Optimal re-calibration of the carrier frequency in automatic measurements of
    -- different nuclei,
    -- frequency sweep / variable offset cumulative spectra (VOCS) NMR,
    -- variable temperature and similar NMR/NQR experiments

AUTOTUNE CONTROLLER (discontinued)

  • Suitable for eATM ROBOT and NMR SERVICE probes
  • Compatible with any console, e.g. Bruker (Av. III HD, Neo), Tecmag, Varian
  • Compatible with any NMR software, e.g. Bruker TopSpin, TNMR

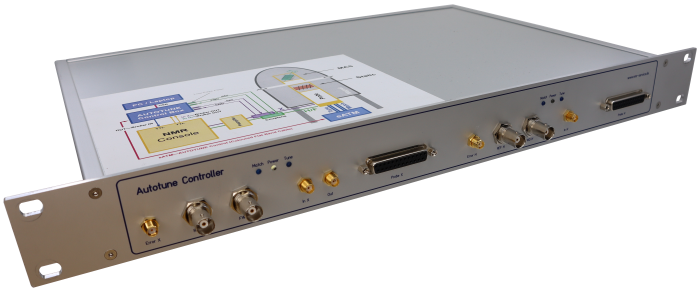

AUTOTUNE H/F—X controller

  • Two-channel AUTOTUNE controller unit
  • Enables automatic tune/match for eATM ROBOT and NMR SERVICE probes
  • Total frequency range: 30 - 900 MHz
  • Usable frequency range depends on probe/console
  • Includes interface to console
  • Synchronisation via TTL:
    -- One TTL output (console—box): start AUTOTUNE—H/F
    -- One TTL output (console—box): start AUTOTUNE—X
    -- One TTL input (box—console): stop any AUTOTUNE
  • USB interface to computer/software
  • Option: upgrade with third channel

AUTOTUNE—H/F and AUTOTUNE—X software

  • Enables manual and automatic tune/match via AUTOTUNE controller
  • Runs on MS Windows 11 and lower versions
  • Synchronisation with the pulse sequence via preamble
  • Probe selection menu and/or probe identifier module
  • Maximum flexibility in re-calibration
    -- Automatic tune/match mode (continously)
    -- Go to saved positions (up to four) followed by automatic tune/match
    -- Tune by list (pre-save 100+ positions) followed by automatic tune/match

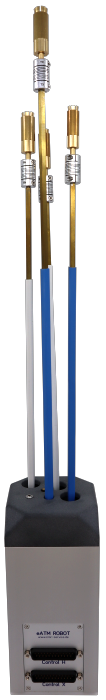

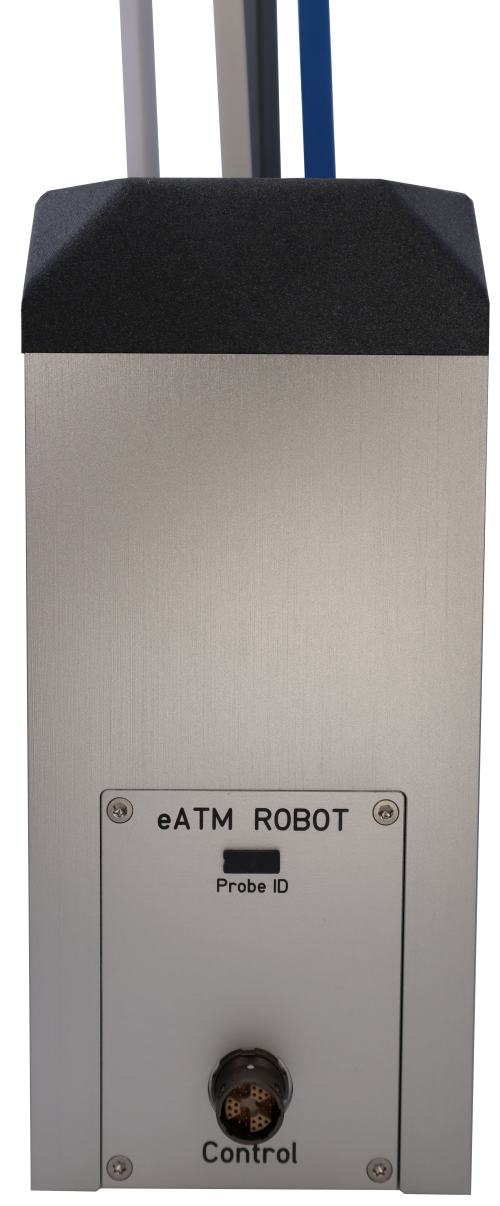

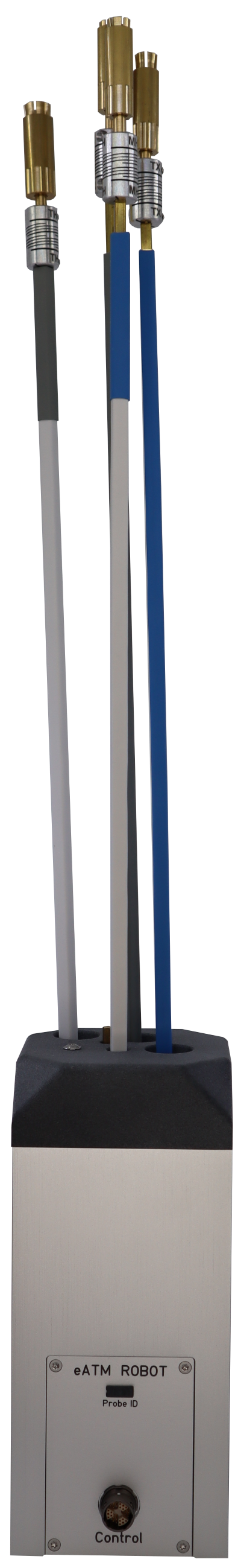

H/F—X eATM ROBOT

  • Double-channel external automatic tuning matching (eATM) robot
  • Stand-alone unit with hard- and software
  • Suitable for any NMR/NQR experiments that require automatic re-calibration of the resonance circuit (tune/match), e.g.
    -- variable-temperature NMR
    -- frequency sweep/VOCS experiments
    -- in situ NMR experiments
  • Suited for H/F—X or X—Y or similar static and MAS probes
  • Suitable for any magnet and fields of 100 MHz to 1 GHz
  • Suitable for any NMR console

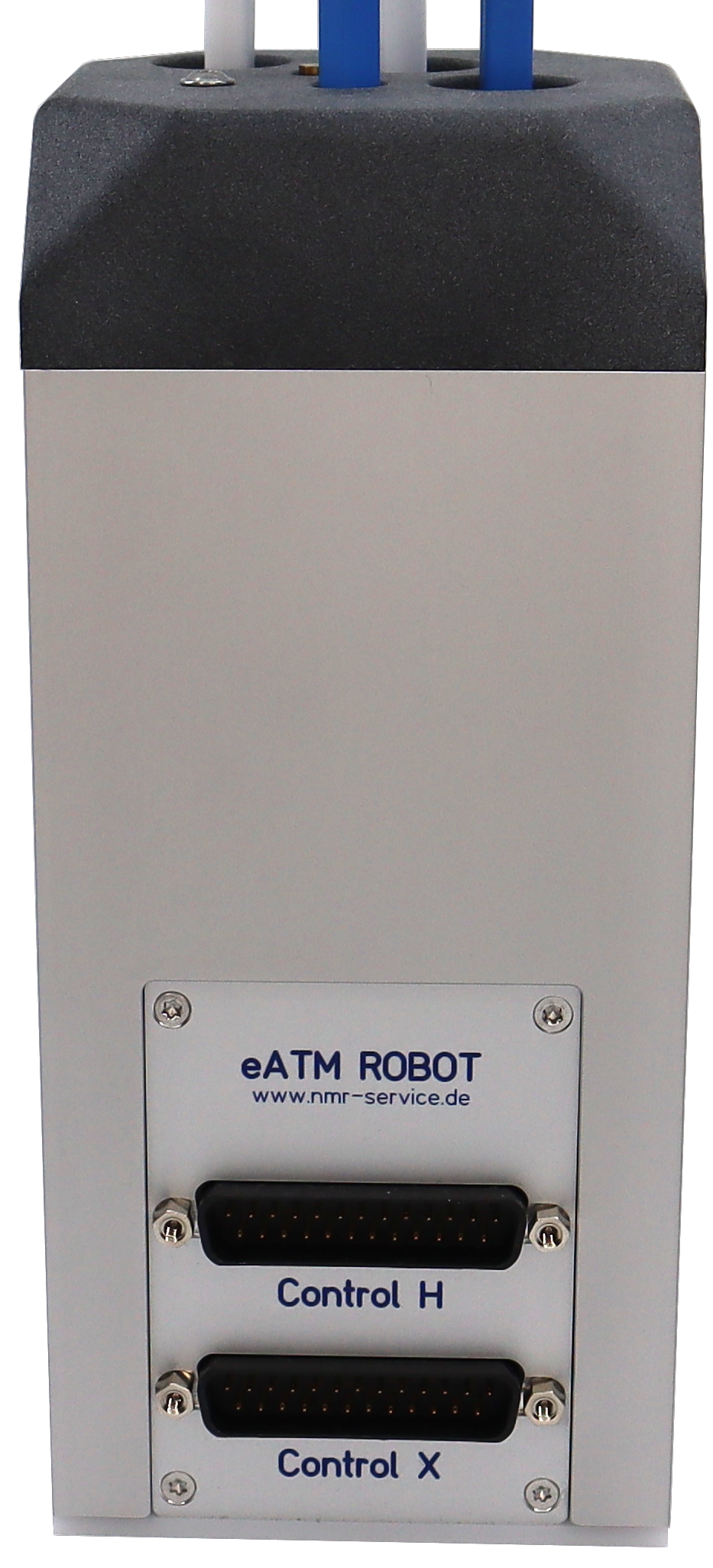

  • Robot unit with four motor/encoder units for H/F—X tune/match
  • Floor plate to position robot underneath the magnet

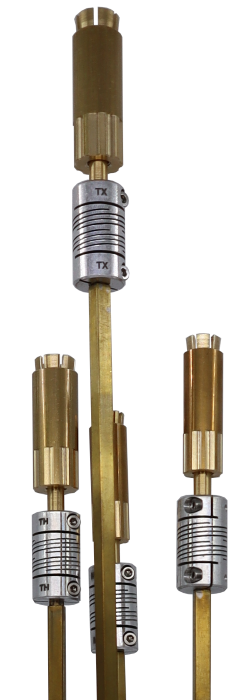

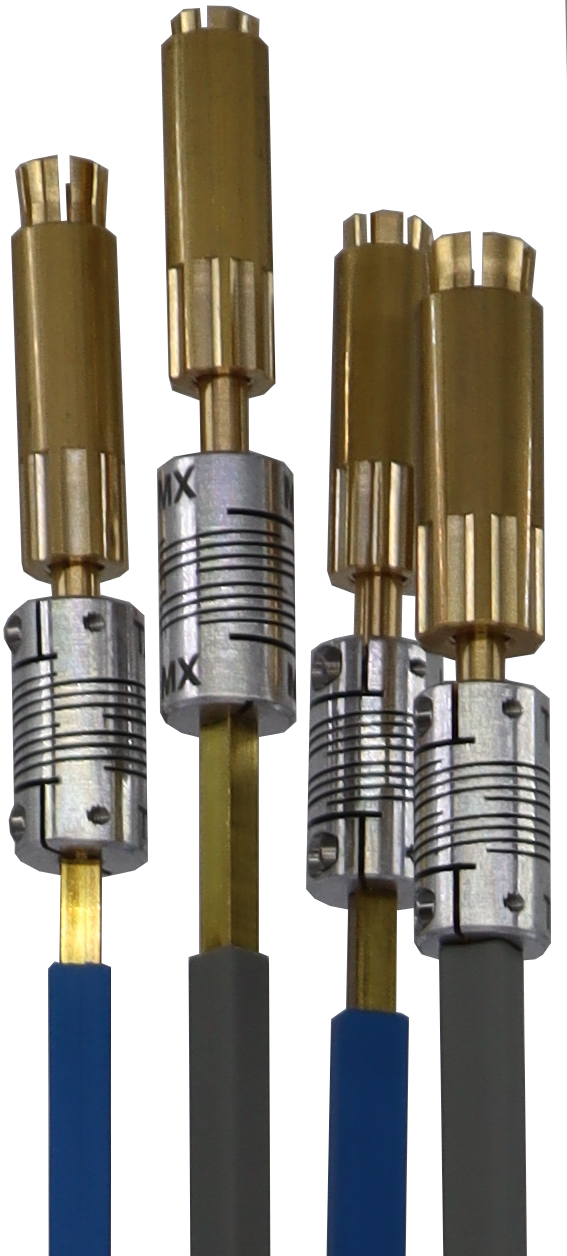

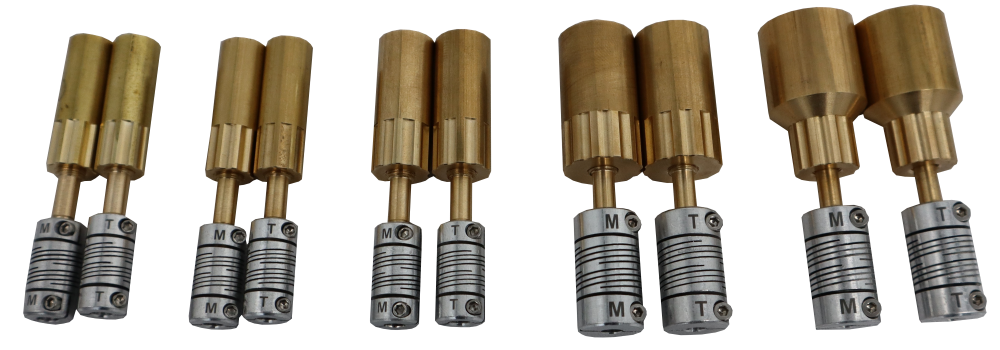

  • Fingertips to attach tune/match elements of the probe to the robot
  • Electronics and interface to AUTOTUNE controller
  • Hardware fitted to customer requirements
  • Option: upgrade to third channel, e.g. for H/F—X—Y probes

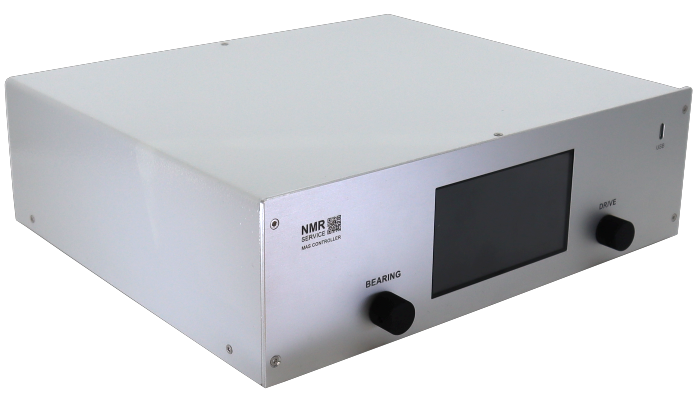

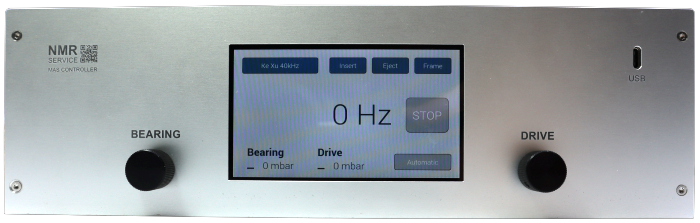

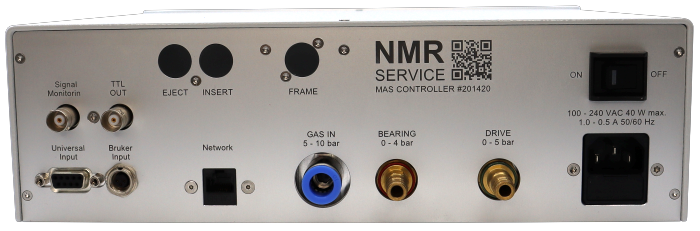

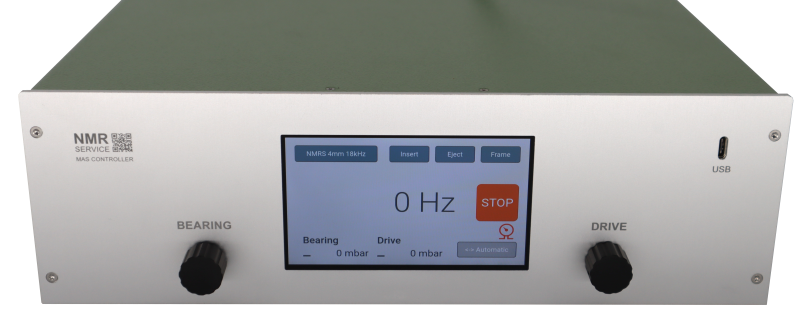

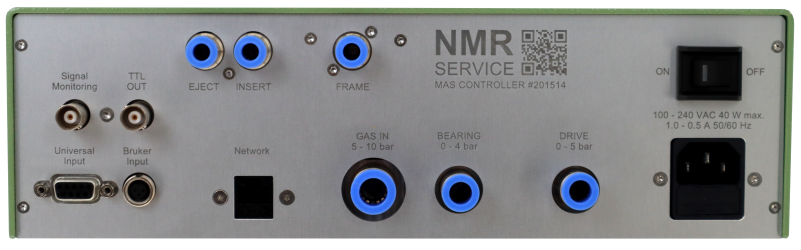

MAS Controller (IV)

  • Stand-alone unit including hard- and software
  • Suitable for all rotor types and consoles
  • Manual drive/bearing adjustment (full manual operation)
  • Automatic settings (touchpad/software control)
  • Remote control via Ethernet (e.g. VNC) on any device
  • Eject/insert and frame flush outputs
  • MAS spin speed detection to 150 kHz (theoretically 300 kHz with 0.1 Hz resolution; Bruker or any other input
  • Spin speed input: digital TTL or analogue with automatic gain calibration
  • Signal monitoring output (voltages)
  • Trigger signal for synchronisation
  • Data logging of all system parameters every 50 ms
  • Free soft- and firmware upgrades
  • Input Voltage: 100 – 240 V (AC) 50/60 Hz
  • Input pressure:
  • min. 5 to max. 10 bar (min. 72 to max. 140 psi)
  • Output pressure:
  • min. 0 to max. 4.5 bar (min. 0 to max. 65 psi) on drive/bearing
  • In/output: compressed air or nitrogen gas

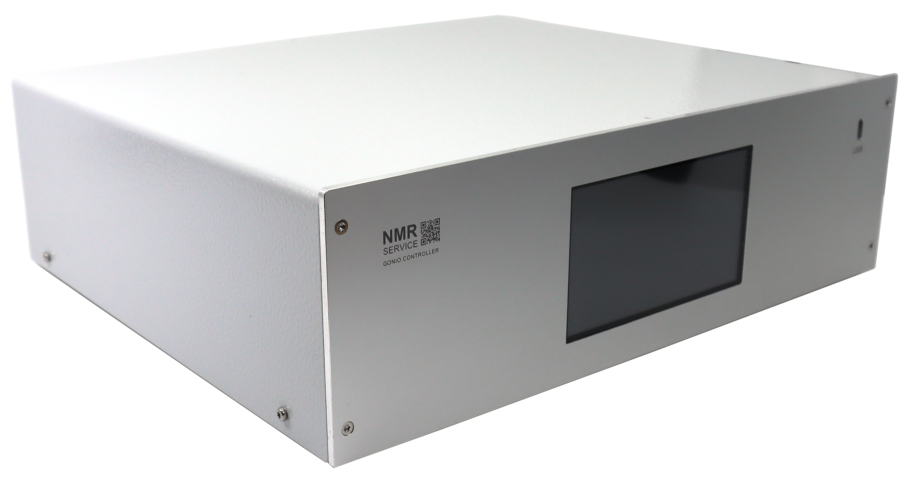

Goniometer Controller

  • Stand-alone unit including hard- and software
  • Suitable for single- and two-axis goniometer
  • Manual and automatic (TTL synchronised) mode
  • Automatic settings (touchpad/software control)
  • Remote control via Ethernet (e.g. VNC) on any device
  • Trigger signal for synchronisation
  • Data logging of all system parameters every 50 ms
  • Free soft- and firmware upgrades
  • Input Voltage: 100 – 240 V (AC) 50/60 Hz

LED Controller

Control LEDs placed around the rotor inside a probe:

  • turn LEDs on or off
  • adjust intensity

Features:

  • manual mode
  • automatic mode via TTL
  • graphical user interface
  • software written in python and pyqt and provided open source

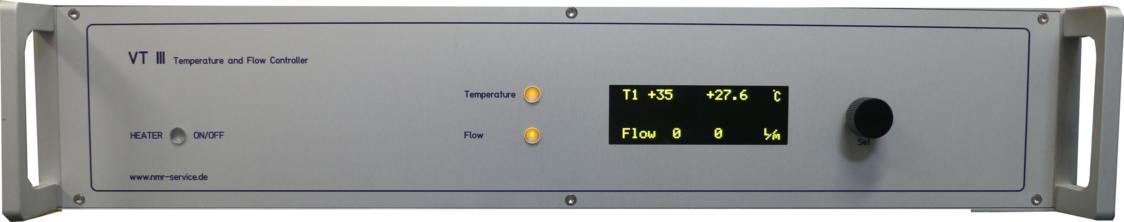

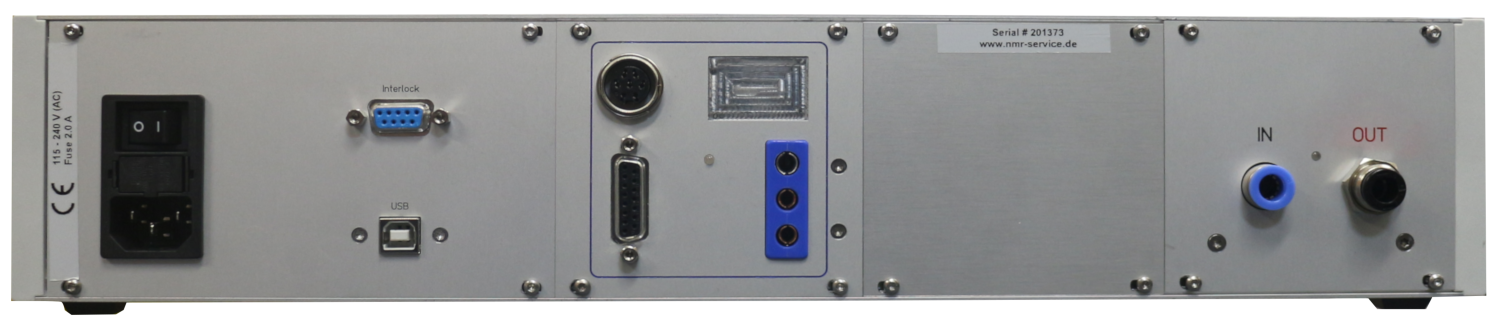

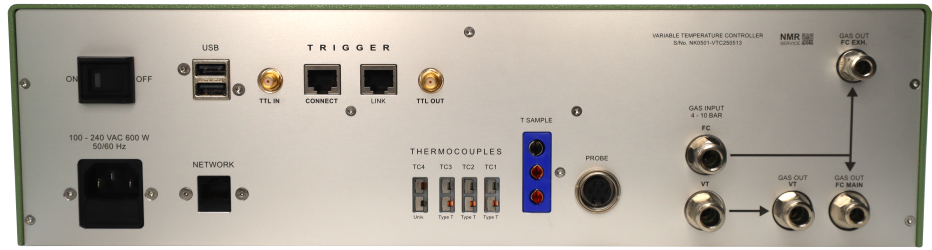

VT and Flow Controller

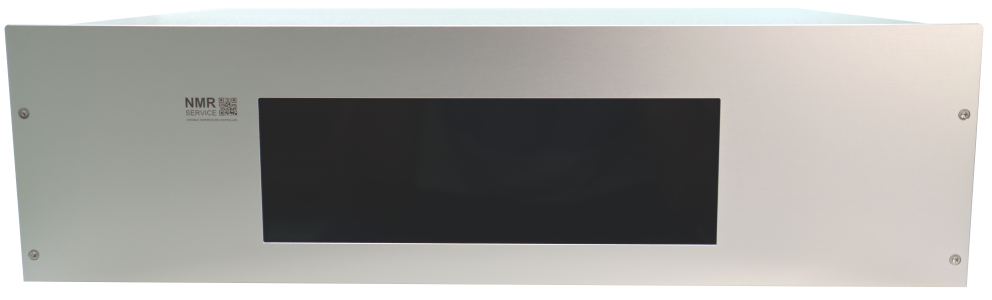

  • standalone unit including hard- and software for VT and/or flow control
  • rack mount possible
  • suitable for
  • single channel or dual channel
  • operation modes:
    -- flow control only
    -- temperature control with internal flow control (typical for static NMR experiments)
    -- temperature control with external flow control (typical for MAS NMR experiments) (interlock required)

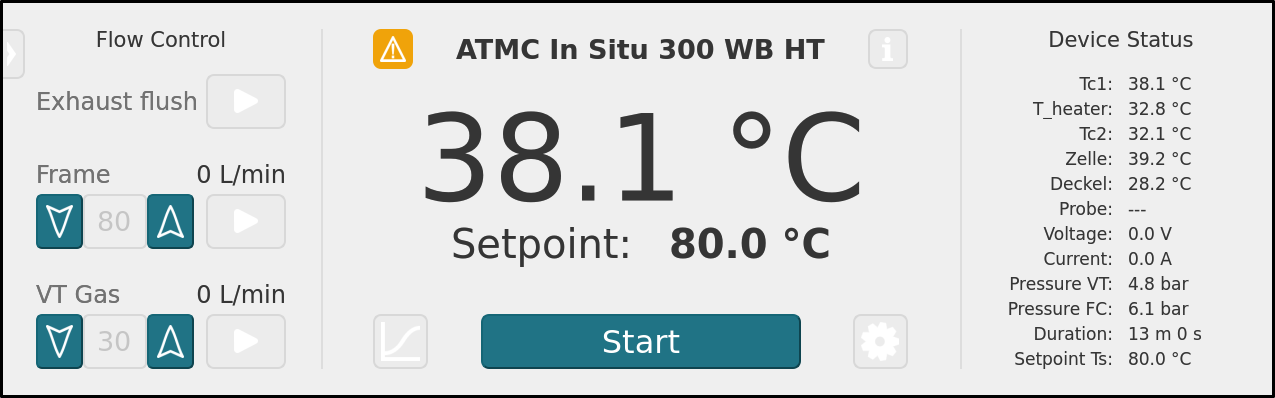

  • graphical PC software for monitoring or controlling
  • experiment automation for both Bruker and Tecmag type experiments
  • thermocouple and sample temperature sensor type selectable in software
  • temperature range -270°C to +900°C
  • flow range 5 l/min to 30 l/min
  • adjustable PID settings from 0 PID to 100/50/20 PID

Watch this space for your customised solution - contact us.
