In situ NMR accessories

We have a strong background in solid-state in situ NMR on energy storage materials. Our products, accessories, and services include complete in situ NMR probe system, smaller setups to get existing NMR probes ready for in situ experiments, in situ NMR cells, tools, and consumables. Please do not hesitate to contact us for further information. Options include:

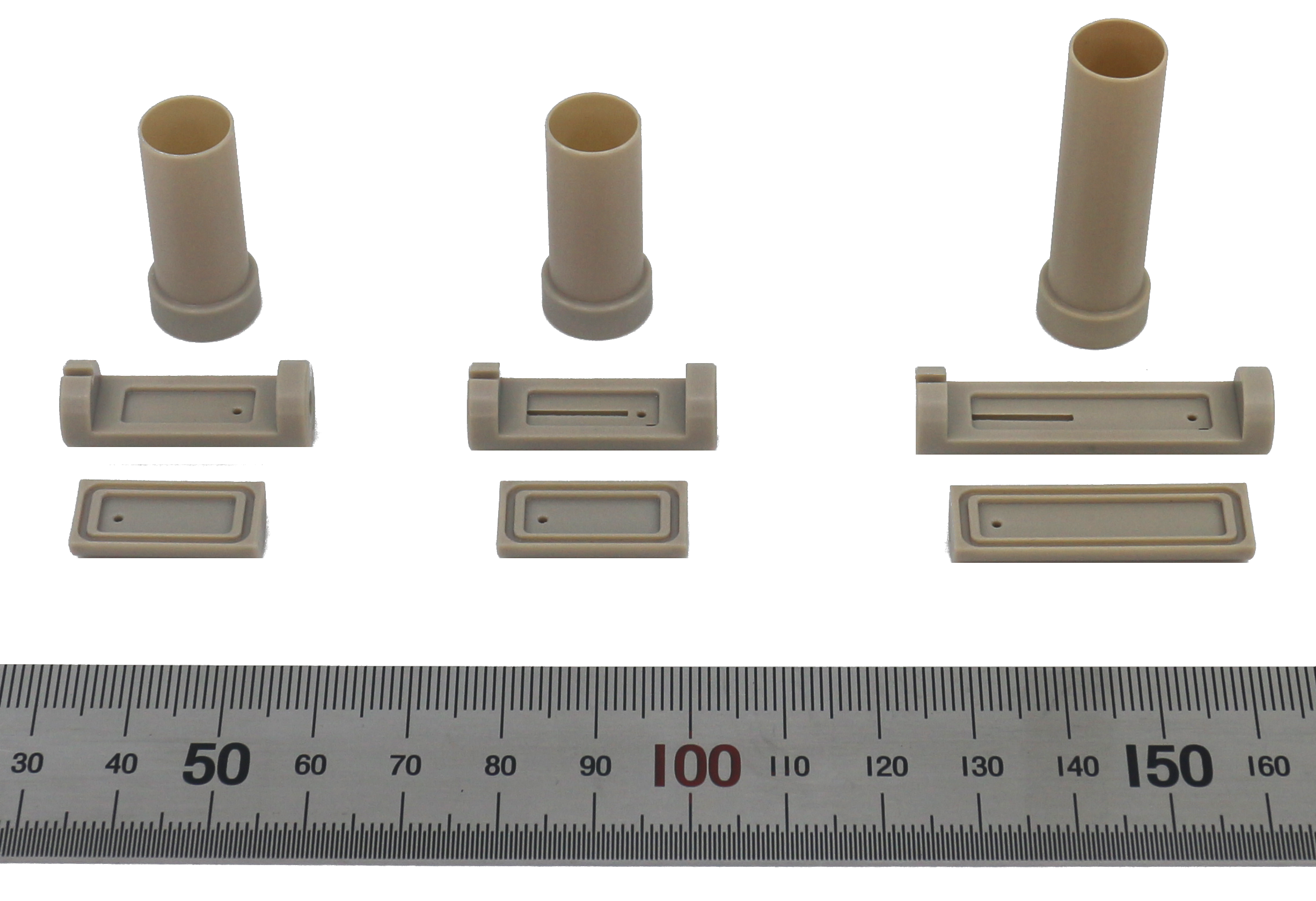

  • Plastic cell capsules OD8, OD11, and OD15
  • Plastic cell capsule dis/assembly tools
  • In situ cell assembly kit - accessories kit comprising 30+ parts for the assembly of plastic cell capsules and other in situ cells, e.g. pouch/plastic bag cells
  • Cu- and Al-wire current collectors
  • Cu- and Al-mesh current collectors
  • PTFE tubes for in situ cells with flow option
  • Spacer disc materials: Teflon (0.25/0.50 mm), Viton rubber (0.5/1.0 mm)
  • Three-ports in situ setup for static NMR/MRI probes
  • Three-way in situ cell adapter
  • BioLogic SP-50e, SP-150e, and 200 potentiostats with/out EIS and various options on the cell cable lengths
  • Virtual and on-site installation and user training sessions on in situ NMR Consulting

eCAT - in situ NMR/e-chem data analysis tool

Our tool "eCAT" allows automatic e-chem/NMR (raw) data processing and visualisation. The raw data input, e.g. Bruker Topspin NMR and BioLogic EC-Lab data is combined in one plot with individual NMR raw data handling such as baseline and phase correction for each spectrum. Postprocessing of the data including the peak fitting and the creation of videos is optional.

Transcoupler

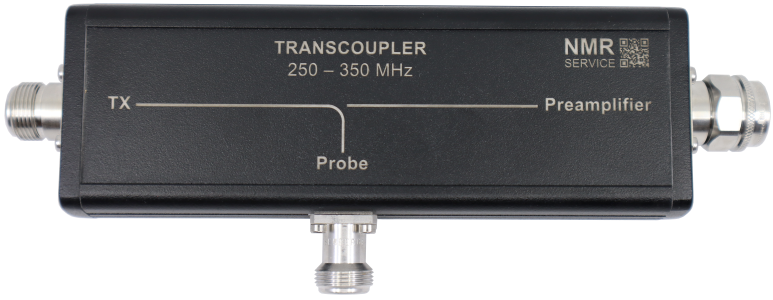

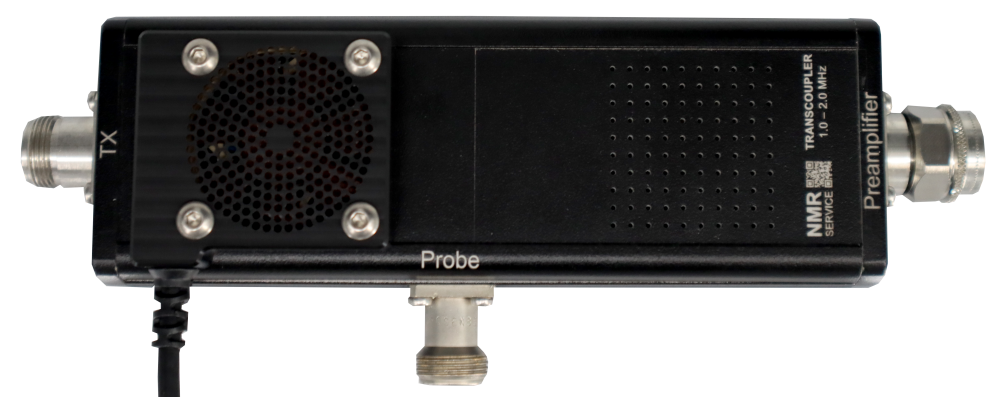

Passive transcoupler modules (duplexer/transmit-receive switch)

  • Custom-made passive transcoupler module
  • RF power 1 - 1000 W
  • VSWR < 1.2
  • Low-frequency range:
    -- 0.45 - 0.75 MHz
    -- 0.7 - 1.0 MHz
    -- 1.0 - 2.0 MHz
    -- 2.0 - 3.0 MHz
  • Mid-frequency range:
    -- 3 - 5 MHz
    -- 5 - 9 MHz
    -- 9 - 14 MHz
    -- 14 - 30 MHz
    -- 30 - 50 MHz
    -- 50 - 80 MHz
    -- 80 - 150 MHz
    -- 150 - 250 MHz
    -- 250 - 350 MHz
    -- 350 - 450 MHz
    -- 450 - 550 MHz
  • High-frequency range:
    -- 550 - 650 MHz
    -- 650 - 850 MHz

Active transcoupler module

  • High-power (max. 300 W) active transcoupler (duplexer/transmit-receive switch)
  • Frequency range 30 - 900 MHz
  • Contact us for details

Preamplifiers

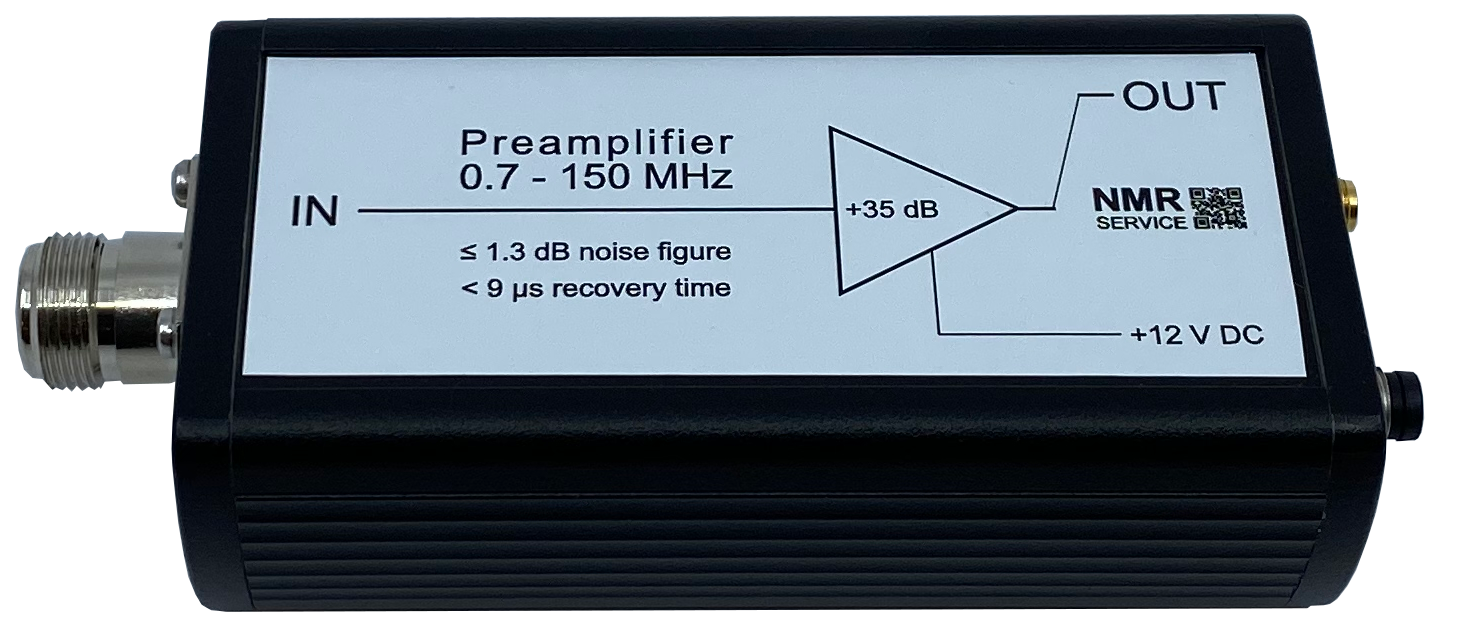

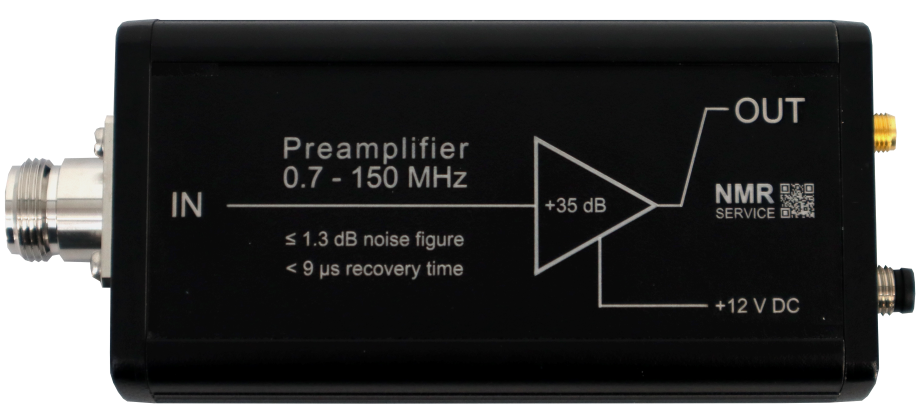

0.7 - 150 MHz module

  • Input frequency: 0.7 – 150 MHz
  • Max. input peak power: 30 dBm (20 Vpp / 1 W)
  • Noise figure: ≤ 1.3 dB
  • Signal amplification (gain): +35 dB (min.)
  • Recovery time: ≤ 9 μs (after 1 μs 30 dBm pulse)
  • Input / output impedance: 50 Ω nominal
  • Input / output VSWR: ≤ 1.4
  • Requires +12 (or max. +15) V (DC) power supply

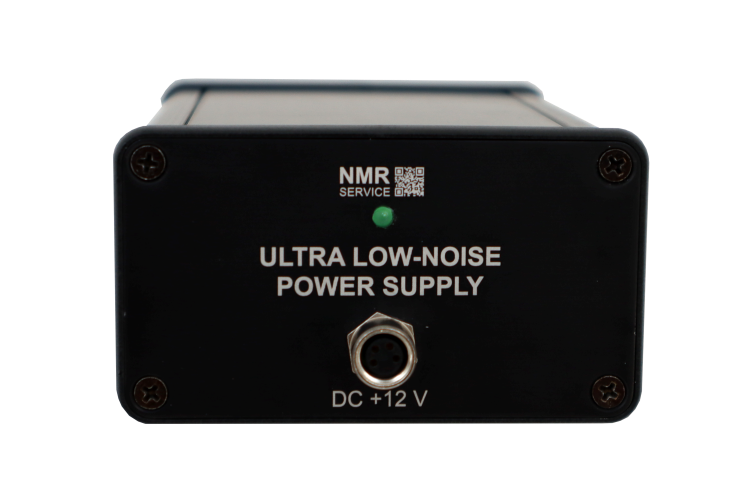

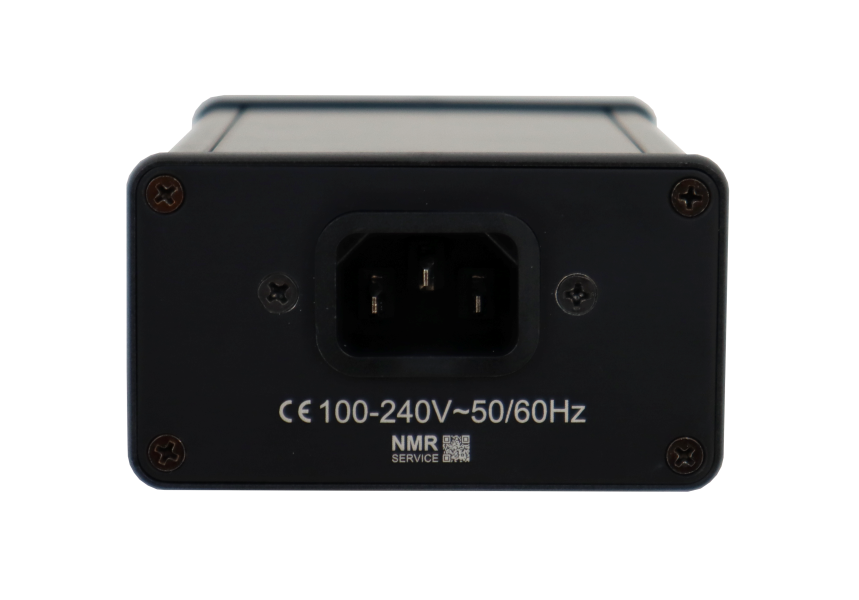

  • Option: customised external power supply
  • Dimensions: 140 × 55 × 32 mm (L × W × H)
  • Temperature: 0 to 50°C
  • Humidity: Max. 95% not condensing

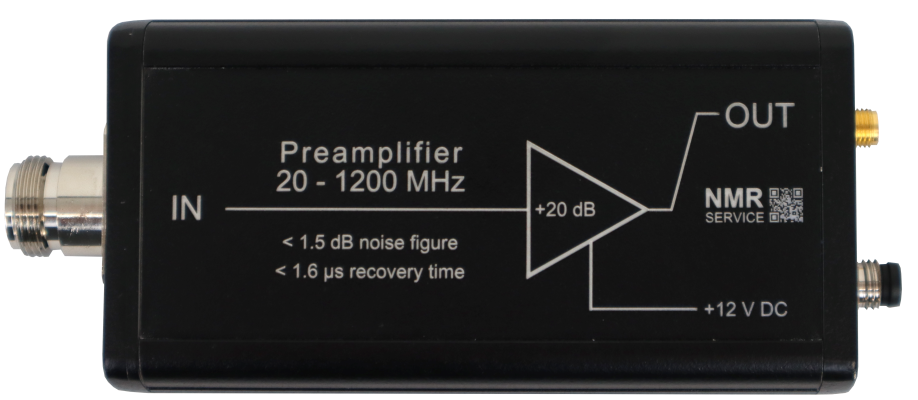

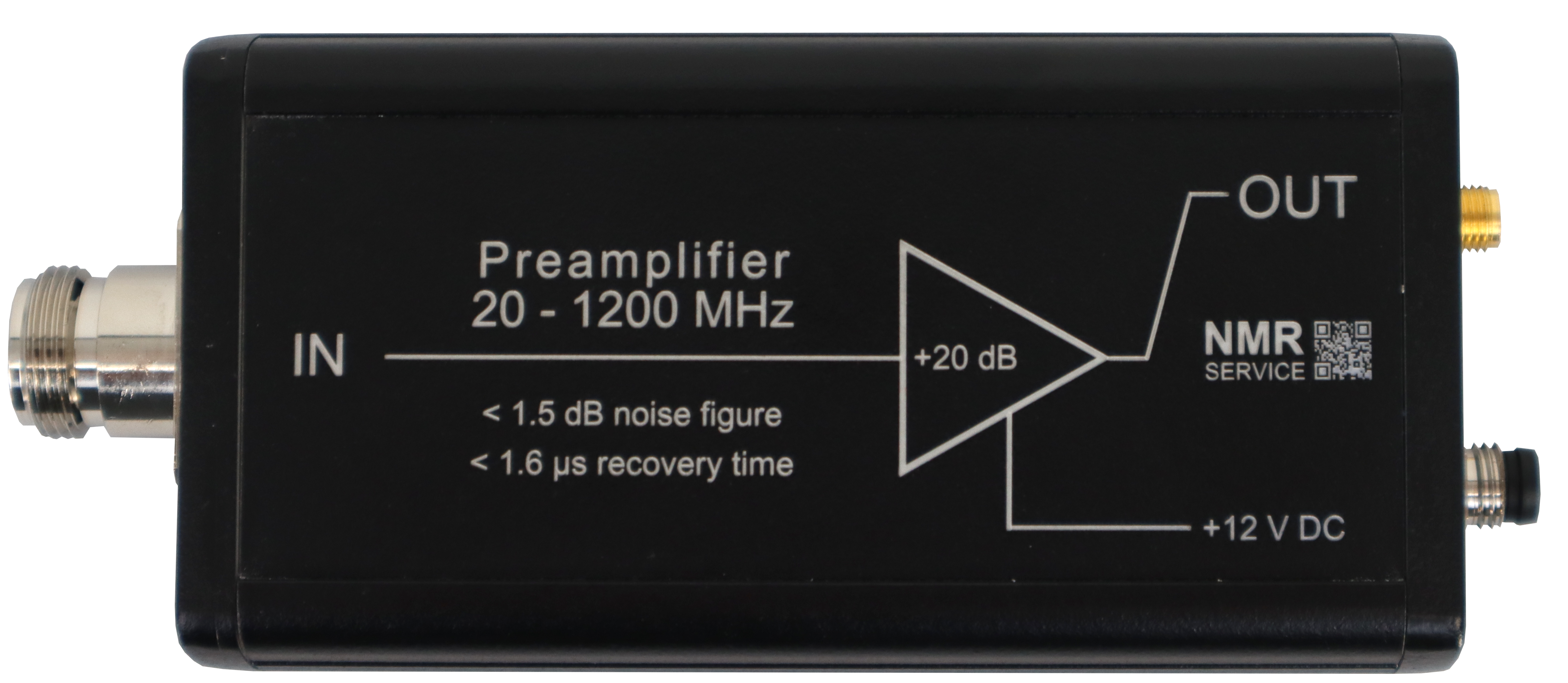

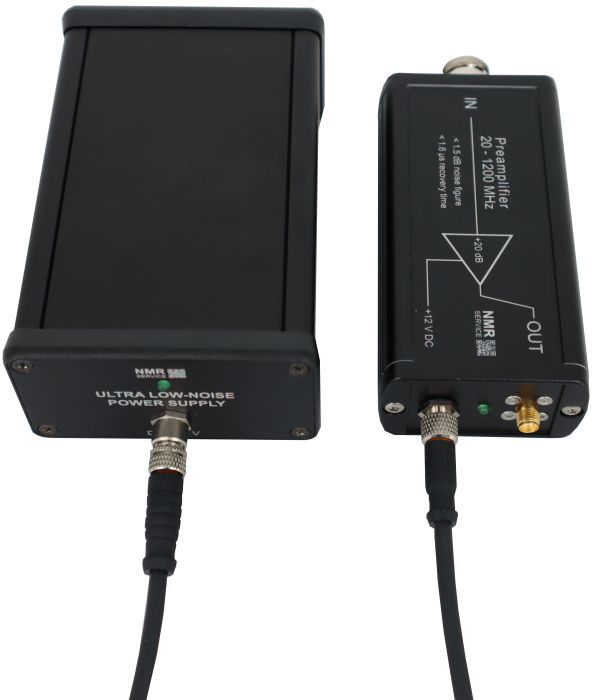

20 - 1200 MHz module

  • Input Frequency: 20 MHz – 1200 MHz
  • Max. Input Peak Power: 30 dBm (20 Vpp) 1 W
  • Noise figure: ≤ 1.5 dB
  • Signal amplification (gain): +20 dB
  • Recovery time: < 1.6 μs (after 1μs 30 dBm pulse)
  • Input impedance: 50 Ω nominal
  • Input / output VSWR: ≤ 3.0
  • Requires +12 - 14 V (DC) power supply
  • Option: customised external power supply
  • Dimensions: 140 × 55 × 32 mm (L × W × H)
  • Temperature: 0 to 50°C
  • Humidity: Max. 95% not condensing

Fixed frequency modules between 1 and 400 MHz
Contact us for options

REDOR Box

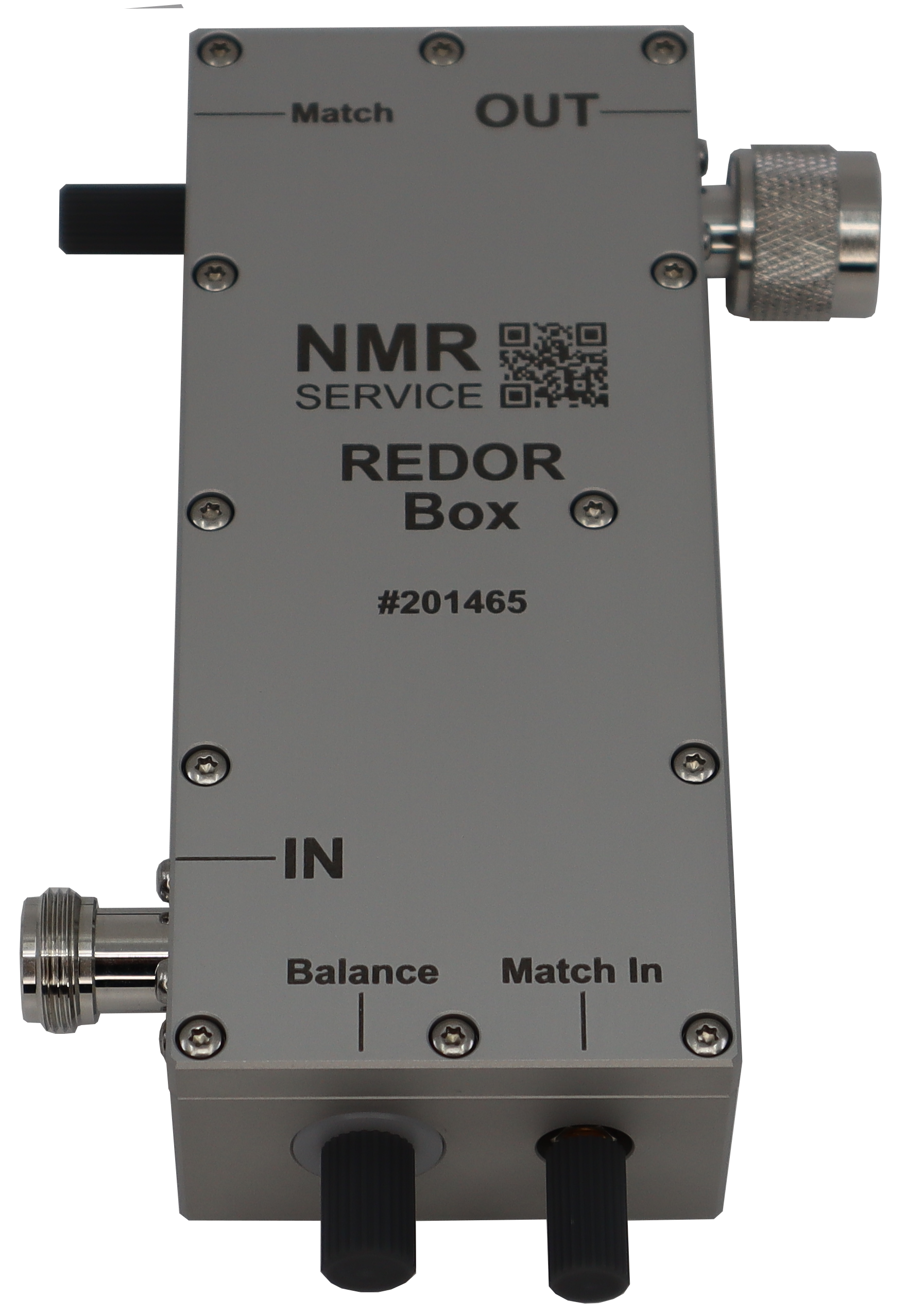

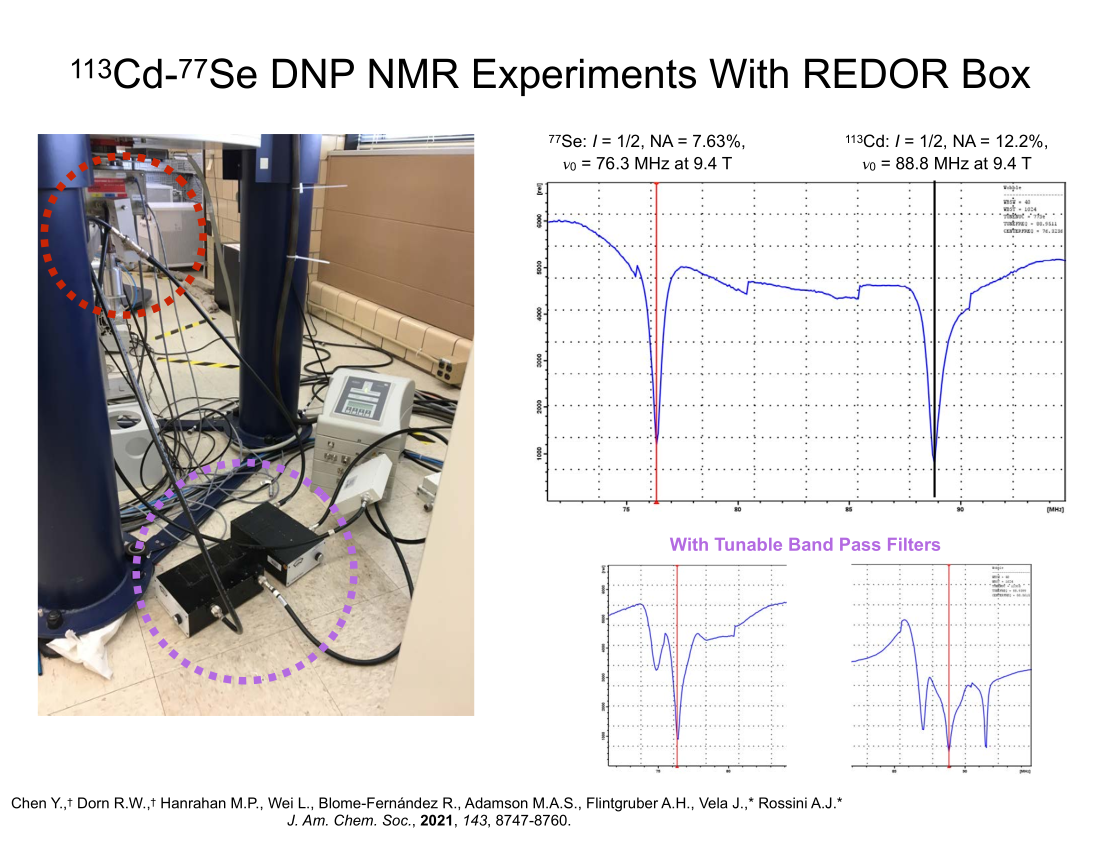

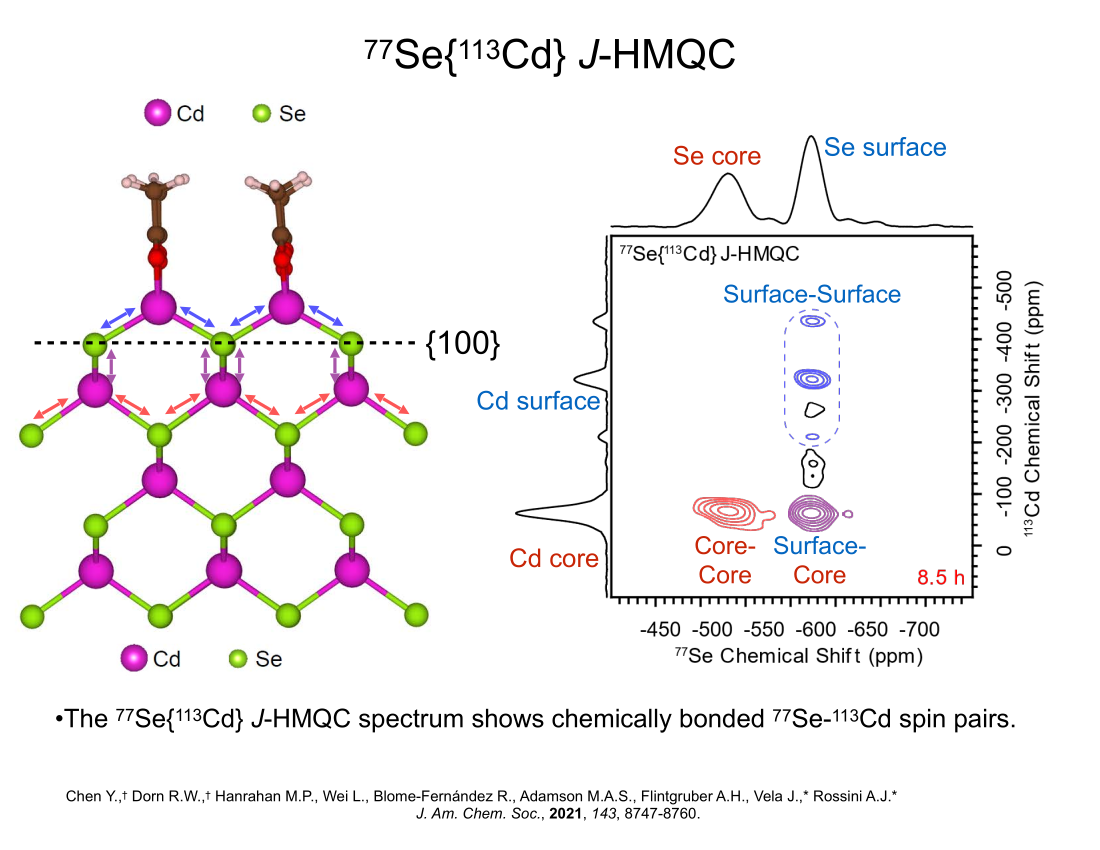

Our REDOR Box splits a single X-channel (e.g. of a Bruker H—X MAS probe) into a double-resonance circuit to enable X—Y Rotational Echo Double Resonance (REDOR) and similiar NMR experiments.

Options:

  • Large REDOR Box: fields of 200 - 600 MHz
  • Small REDOR Box: fields of 700 - 900 MHz

Specifications:

  • Up to 1000 W RF pulse power (50 μs)
  • VSWR < 1.2
  • Frequency splitting 1 - 20 MHz, e.g. 13C/23Na, 13C/27Al
  • Larger frequency splitting is subject to discussion
  • Suitable for Bruker 4.0 and 3.2 mm H—X(—Y) MAS probes (X channel)
  • Suitable for DNP experiments
  • Suitability for other MAS rotor/probe sizes is subject to discussion
  • The box is not suited for the 1H/19F channel
  • The H channel can be used with the REDOR Box attached to X
  • The Y channel can still be used with the REDOR Box attached to X
  • Simple installation/mounting directly at the probe
  • N-type connectors
  • Efficiency of up to 80% compared to single resonance probe

MAS accessories

Our various MAS accessories include:

  • Stators Bruker DVT type 2.5, 3.2, 4.0, or 7.0 mm made of Vespel
  • Stators Phoenix NMR/Varian pencil type of any dimension
  • MAS rotors for 2.5, 3.2, 4.0, and 7.0 mm (Bruker/Cortecnet)
  • Spin speed detection modules
  • MAS stator/rotor test stand

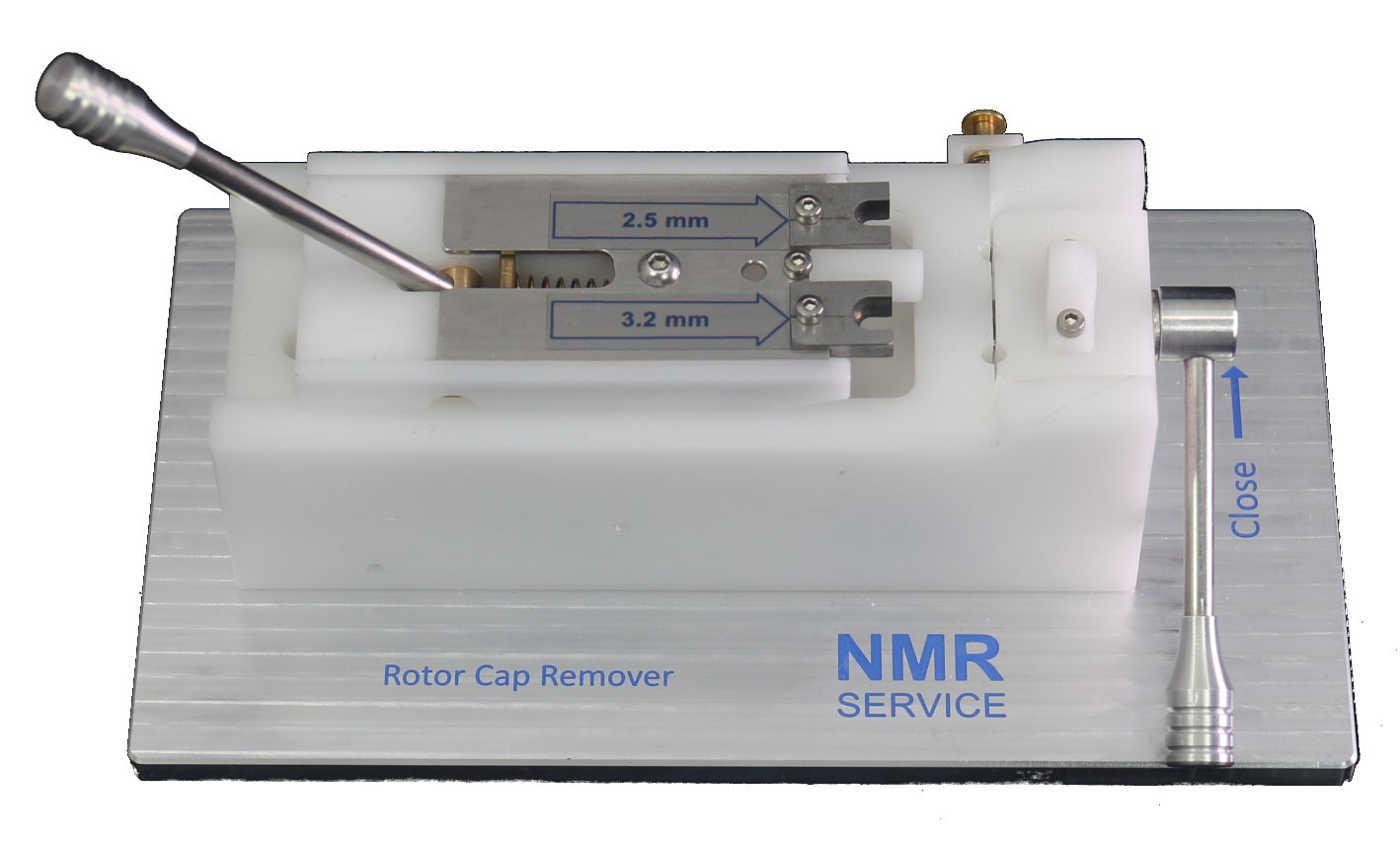

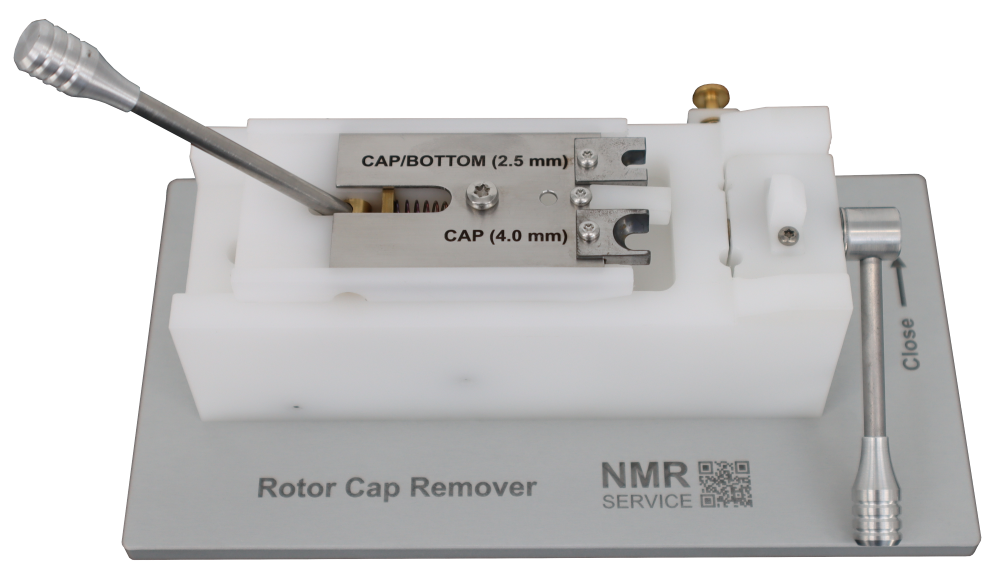

  • Rotor cap/bottom remover tool (Bruker 2.5, 3.2, 4.0, and 7.0 mm)

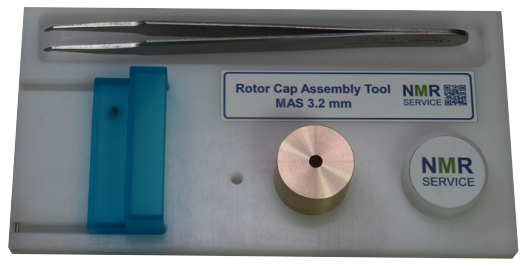

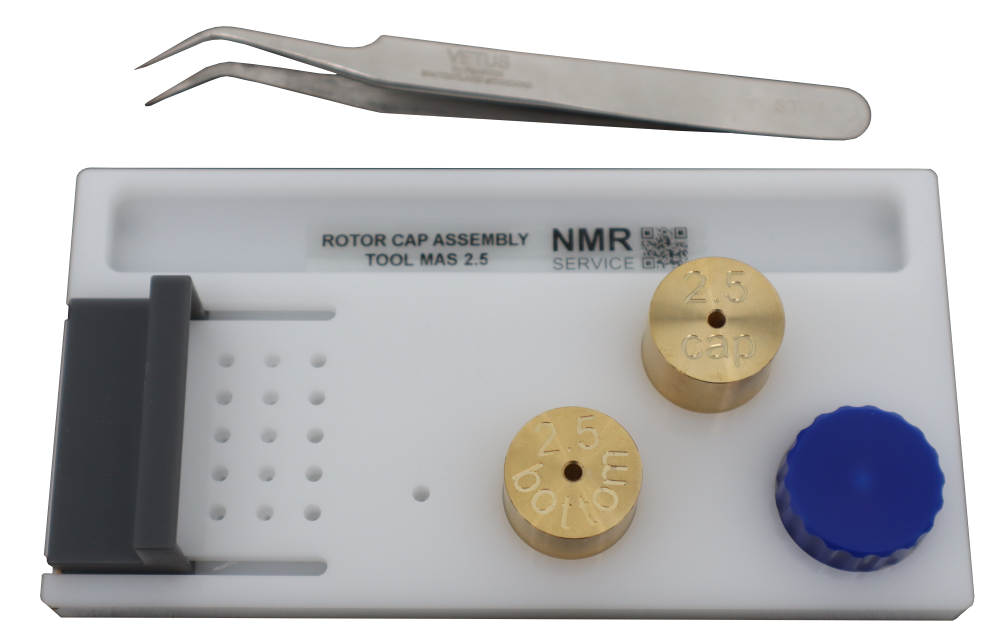

  • Rotor cap/bottom assembly tool (Bruker 2.5, 3.2, 4.0, and 7.0 mm)

Watch this space for your customised solution - contact us.
